- Country
- Germany
- Manufacturer / Brand
- Heli Gerätebau, Hempel KG; Limbach-Oberfrohna, (Ostd.)
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 122129
-
- alternative name: Gerätebau Limbach VEB
- Brand: VEB Elektromechanik Mittweida

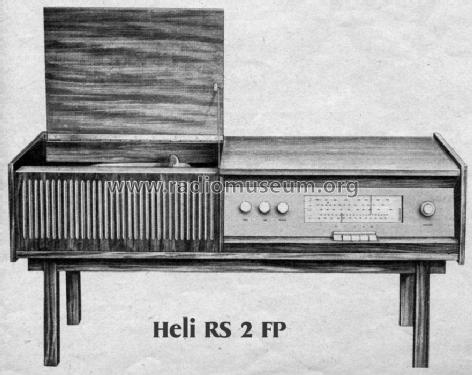

Prospektbild
Katalogabbildung
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: RS2FP - Heli Gerätebau, Hempel KG;
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 1200 x 570 x 410 mm / 47.2 x 22.4 x 16.1 inch
- Notes
-
Rundfunkgerät R2F und 4-touriger Plattenspieler "Cheri".
Das Gerät wurde laut Katalog auch ohne eingebauten Plattenspieler für 765 Mark angeboten, (Gewicht: 27 kg).
- Price in first year of sale
- 950.00 DM
- Source of data
- -- Original prospect or advert
- Mentioned in
- Funkverlag Hein, Service-DVD
- Literature/Schematics (1)
- Branchenbuch für Elektro-Akustik (DDR, 1963)
- Author
- Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
