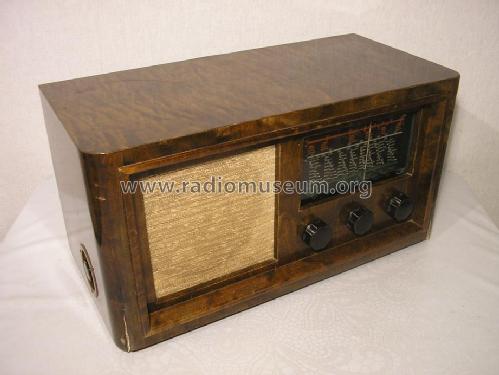

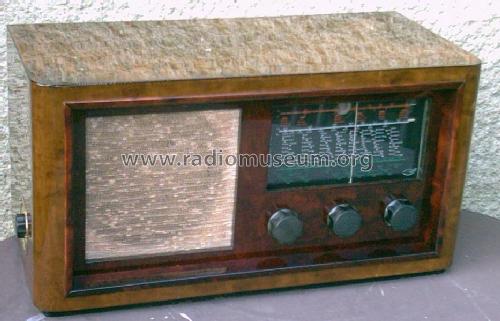

560; Helvar Suomen (ID = 144524) Radio
Helvar Suomen: 560 [Radio] ID = 144524 933x599
Select picture or schematic to display from thumbnails on the right and click for download.
For model 560, Helvar (Suomen Koneliike); Helsinki

Country:  Finland
Manufacturer / Brand:  Helvar (Suomen Koneliike); Helsinki
alternative name

Arma, Helsinki
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH11 EBF11 EF11 EL11N EM1 AZ11
Main principle Superheterodyne (common); ZF/IF 484 kHz; 2 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: 560 - Helvar Suomen Koneliike;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 280 x 270 mm / 21.3 x 11 x 10.6 inch
Source of data - - Data from my own collection
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Peter Hoddow. See "Data change" for further contributors.
