• Country
• Finland

• Manufacturer / Brand
• Oy Helvar; Helsinki

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 225875

• Number of Tubes
• 6

• Valves / Tubes
• ECH21 EF22 EF22 EBL21 EM34 AZ1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

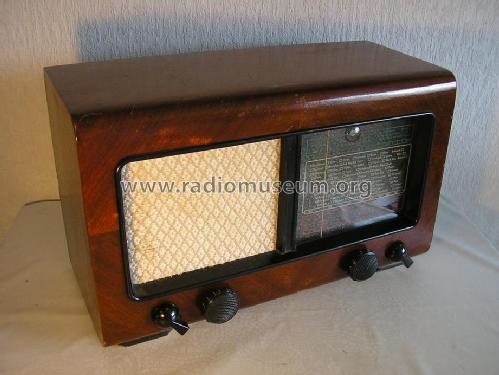

• Model: Mikki 669W - Oy Helvar; Helsinki

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 522 x 317 x 225 mm / 20.6 x 12.5 x 8.9 inch

• Notes

• Suomi Finland Patent: 324189

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.

• Other Models

• Here you find 254 models, 214 with images and 93 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
