• Country
• Finland

• Manufacturer / Brand
• Oy Helvar; Helsinki

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118246

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 484/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

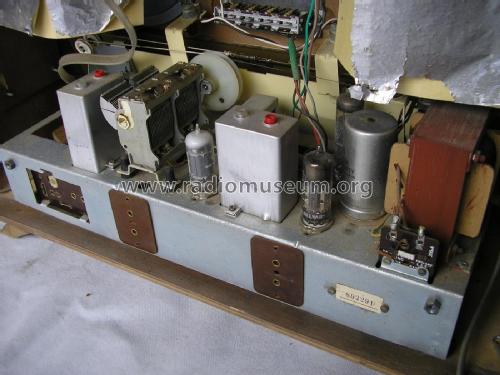

• Model: Stereo-Minuetto - Oy Helvar; Helsinki

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 562 x 350 x 205 mm / 22.1 x 13.8 x 8.1 inch

• Notes
• Built in FM antenna. Dial lamps: 2x 6,3V / 0,3A
  Selenium rectifier

• Net weight (2.2 lb = 1 kg)
• 10.2 kg / 22 lb 7.5 oz (22.467 lb)

• Source of data
• -- Schematic

• Author
• Model page created by a member from FIN. See "Data change" for further contributors.
