Regent 6650W

Regent 6650W; Helvar Suomen (ID = 2055558) Radio Regent 6650W; Helvar Suomen (ID = 148712) Radio
Regent 6650W; Helvar Suomen (ID = 148714) Radio Regent 6650W; Helvar Suomen (ID = 148713) Radio
Regent 6650W; Helvar Suomen (ID = 148715) Radio Regent 6650W; Helvar Suomen (ID = 2064259) Radio
Regent 6650W; Helvar Suomen (ID = 2064260) Radio Regent 6650W; Helvar Suomen (ID = 2064261) Radio
Regent 6650W; Helvar Suomen (ID = 2064262) Radio Regent 6650W; Helvar Suomen (ID = 2064263) Radio
Use red slider bar for more.

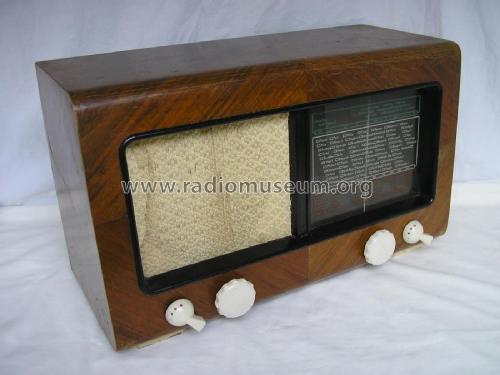

Regent 6650W; Helvar Suomen (ID = 2055558) Radio
Helvar Suomen: Regent 6650W [Radio] ID = 2055558 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Regent 6650W, Helvar (Suomen Koneliike); Helsinki

Country:  Finland
Manufacturer / Brand:  Helvar (Suomen Koneliike); Helsinki
alternative name

Arma, Helsinki
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 EF22 EF22 EBL21 EM34 AZ1
Main principle ZF/IF 484 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Regent 6650W - Helvar Suomen Koneliike;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 318 x 250 mm / 20.5 x 12.5 x 9.8 inch
Notes Radio was made by Helvar Oy Helsinki for markets of Suomen Koneliike Helsinki.
Net weight (2.2 lb = 1 kg) 10.2 kg / 22 lb 7.5 oz (22.467 lb)
External source of data Lasse Nirhamo
Source of data - - Data from my own collection

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.



All listed radios etc. from Helvar (Suomen Koneliike); Helsinki
Here you find 248 models, 205 with images and 91 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
