HV111

HV111; Henry, Kapt. (ID = 497875) Ampl/Mixer

HV111; Henry, Kapt. (ID = 497757) Ampl/Mixer
HV111; Henry, Kapt. (ID = 550524) Ampl/Mixer HV111; Henry, Kapt. (ID = 550525) Ampl/Mixer

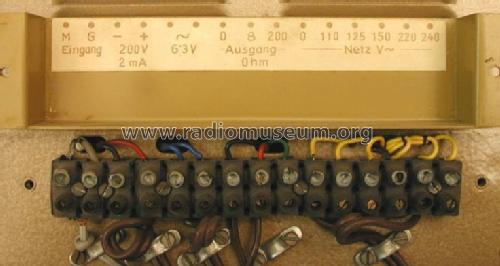

HV111; Henry, Kapt. (ID = 550526) Ampl/Mixer HV111; Henry, Kapt. (ID = 550527) Ampl/Mixer
HV111; Henry, Kapt. (ID = 550528) Ampl/Mixer HV111; Henry, Kapt. (ID = 550529) Ampl/Mixer
Use red slider bar for more.
HV111; Henry, Kapt. (ID = 550524) Ampl/Mixer
Henry, Kapt.: HV111 [Ampl/Mixer] ID = 550524 608x584
Select picture or schematic to display from thumbnails on the right and click for download.
For model HV111, Henry, Kapt. Heinrich & Co.; Wien:
aus ebay, Verkäufer kydippe

Country:  Austria
Manufacturer / Brand:  Henry, Kapt. Heinrich & Co.; Wien
Year: 1957 Category: Audio Amplifier or -mixer
Valves / Tubes 4: ECC83 EL84 EL84 EZ80
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (undistorted)
from Radiomuseum.org Model: HV111 - Henry, Kapt. Heinrich & Co.;
Material Metal case
Shape Chassis only or for «building in»
Notes Endstufe mono, mit Stromversorgung für den passenden Vorverstärker HSTV 18.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 1'720.00 ATS
Collectors' prices
Source of data - - Manufacturers Literature

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
