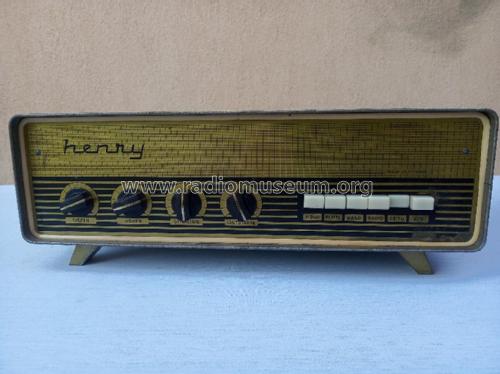

HV 215 Stereo

HV 215 Stereo; Henry, Kapt. (ID = 1518649) Ampl/Mixer
Use red slider bar for more.
HV 215 Stereo; Henry, Kapt. (ID = 1518649) Ampl/Mixer
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Austria
Manufacturer / Brand:  Henry, Kapt. Heinrich & Co.; Wien
Year: 1963 Category: Audio Amplifier or -mixer
Valves / Tubes 9: EF86 EF86 ECC83 ECC83 ECC83 EL84 EL84 EL84 EL84 B300C200 B30C250
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: HV 215 Stereo - Henry, Kapt. Heinrich & Co.;
Notes

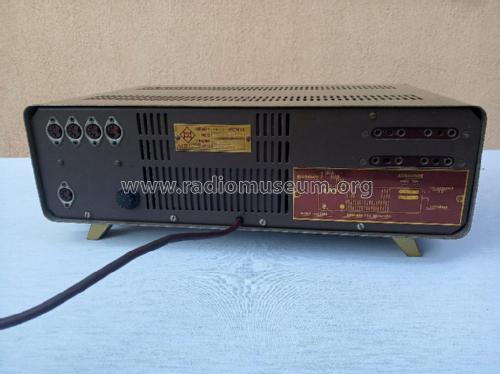

Eingänge für: Line, Radio, Tape, Phono (Entzerrung wählbar über Zusatzstecker).
Ausgänge: Lautsprecher, 8 Ohm; Kopfhörer.

Mentioned in -- Original-techn. papers.

Model page created by Fritz Czapek † 29.9.17. See "Data change" for further contributors.
