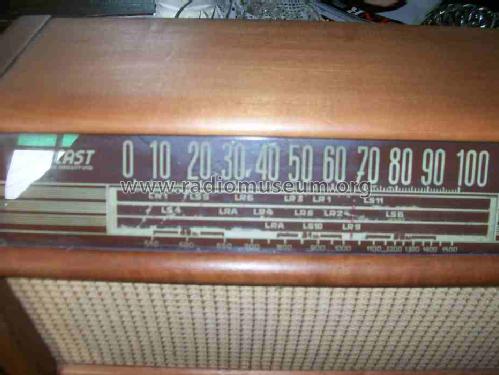

Interbanda ; Hercast Radio - (ID = 888580) Radio Interbanda ; Hercast Radio - (ID = 888581) Radio
Interbanda ; Hercast Radio - (ID = 888583) Radio
Use red slider bar for more.

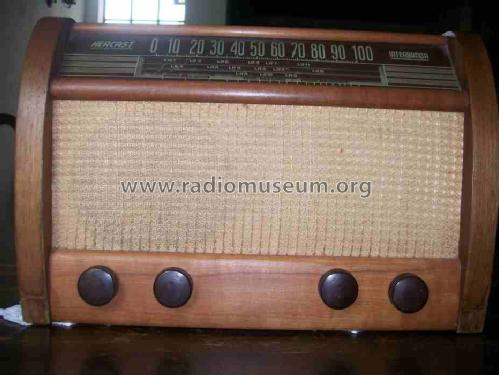

Interbanda ; Hercast Radio - (ID = 888580) Radio
Hercast Radio -: Interbanda [Radio] ID = 888580 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Interbanda, Hercast Radio - Buenos Aires-

Country:  Argentina
Manufacturer / Brand:  Hercast Radio - Buenos Aires-
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Interbanda - Hercast Radio - Buenos Aires-
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 280 x 215 mm / 16.9 x 11 x 8.5 inch
Source of data - - Data from my own collection

Model page created by Heriberto Tavella. See "Data change" for further contributors.
