Oscillator OS-10

Oscillator OS-10; Hickok Electrical (ID = 686577) Equipment
Oscillator OS-10; Hickok Electrical (ID = 208245) Equipment Oscillator OS-10; Hickok Electrical (ID = 666457) Equipment
Oscillator OS-10; Hickok Electrical (ID = 666458) Equipment Oscillator OS-10; Hickok Electrical (ID = 666459) Equipment
Oscillator OS-10; Hickok Electrical (ID = 666460) Equipment
Use red slider bar for more.
Oscillator OS-10; Hickok Electrical (ID = 208245) Equipment
Hickok Electrical: Oscillator OS-10 [Equipment] ID = 208245 258x206
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscillator OS-10, Hickok Electrical Instrument Co.; Cleveland, OH

Country:  United States of America (USA)
Manufacturer / Brand:  Hickok Electrical Instrument Co.; Cleveland, OH
alternative name

Hickock
Year: 1936 Category: Service- or Lab Equipment
Valves / Tubes 4: 6J7 6C6 6D6 1-V
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100-120 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscillator OS-10 - Hickok Electrical Instrument
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 12 x 9.25 x 6 inch / 305 x 235 x 152 mm
Price in first year of sale 49.00 $
Collectors' prices

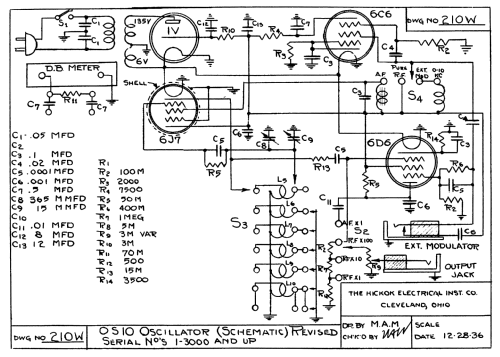

Literature/Schematics (1) -- Schematic (1938 Radolek Catalog)

Model page created by Vitor Oliveira. See "Data change" for further contributors.
