Tube Tester KS-15560L1

Tube Tester KS-15560L1; Hickok Electrical (ID = 878210) Equipment

Tube Tester KS-15560L1; Hickok Electrical (ID = 878211) Equipment
Tube Tester KS-15560L1; Hickok Electrical (ID = 456623) Equipment
Use red slider bar for more.
Tube Tester KS-15560L1; Hickok Electrical (ID = 456623) Equipment
Hickok Electrical: Tube Tester KS-15560L1 [Equipment] ID = 456623 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tube Tester KS-15560L1, Hickok Electrical Instrument Co.; Cleveland, OH

Country:  United States of America (USA)
Manufacturer / Brand:  Hickok Electrical Instrument Co.; Cleveland, OH
alternative name

Hickock
Year: 1960 ?? Category: Service- or Lab Equipment
Valves / Tubes 2: 83 5Y3
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110V Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Tube Tester KS-15560L1 - Hickok Electrical Instrument
Material Various materials
Shape Tablemodel, with any shape - general.

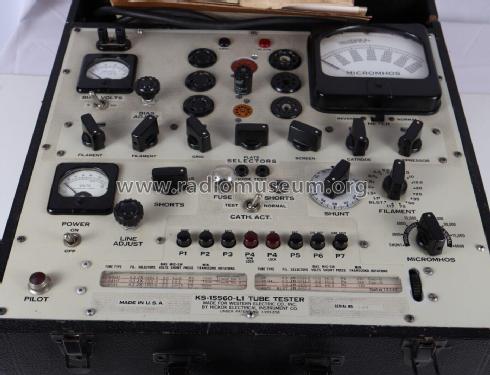

Notes KS-15560-L1 is Hickok product made for Western Electric, derivated from at that time flagship model 539A. Laboratory model with modifications to handle WE tubes such as 300B. Mutual conductance type of operation(measurment). 3 panel meters design.
Source of data -- Original-techn. papers.
Literature/Schematics (1) - - Data from my own collection

Model page created by Sinisa Trlin. See "Data change" for further contributors.
