Tube tester RD-1700

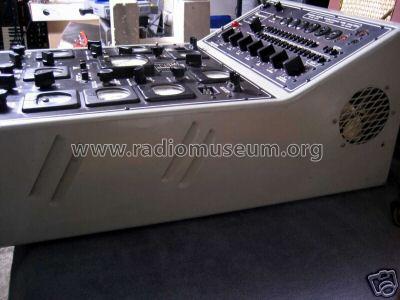

Tube tester RD-1700; Hickok Electrical (ID = 301024) Equipment Tube tester RD-1700; Hickok Electrical (ID = 301025) Equipment
Use red slider bar for more.
Tube tester RD-1700; Hickok Electrical (ID = 301024) Equipment
Hickok Electrical: Tube tester RD-1700 [Equipment] ID = 301024 299x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tube tester RD-1700, Hickok Electrical Instrument Co.; Cleveland, OH

Country:  United States of America (USA)
Manufacturer / Brand:  Hickok Electrical Instrument Co.; Cleveland, OH
alternative name

Hickock
Year: 1959 ? Category: Service- or Lab Equipment
Valves / Tubes 10: 83 83 0B2 0B2 6AH6 6AH6 6CD6GA 6CD6GA 6CD6GA 6C4 6X4 12AU7
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Tube tester RD-1700 - Hickok Electrical Instrument
Material Metal case
Shape Tablemodel, slant panel.
Dimensions (WHD) 480 x 300 x 720 mm / 18.9 x 11.8 x 28.3 inch
Notes Improved version using stabilised test voltage supply.
Net weight (2.2 lb = 1 kg) 34 kg / 74 lb 14.2 oz (74.89 lb)
Source of data -- Original-techn. papers.

Model page created by Rainer Ernst Schütz † 15.07.11. See "Data change" for further contributors.
