• Country
• Germany

• Manufacturer / Brand
• Himmelwerk AG, Tübingen - siehe auch LTP (Nachfolger)

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15881

• Number of Tubes
• 5

• Valves / Tubes
• 1L4 1R5 1T4 1S5 3S4

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 468/473 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Line / Batteries (any type) / AC/DC 100-140; 180-250 / 2×4,5 & 100 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

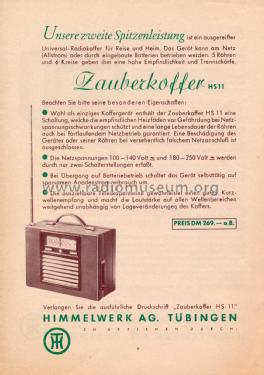

• Model: Zauberkoffer HS11 - Himmelwerk AG, Tübingen -

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 295 x 208 x 120 mm / 11.6 x 8.2 x 4.7 inch

• Notes
• Alternative-Röhrenbestückung: DF91, DK91, DF91, DAF91, DL92. Eingebaute Rahmenantenne und ausziehbare Stabantenn.

• Net weight (2.2 lb = 1 kg)
• 3.7 kg / 8 lb 2.4 oz (8.15 lb)

• Price in first year of sale
• 279.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funkschau (5015)
