- Country
- Great Britain (UK)
- Manufacturer / Brand
- His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 148491
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 47010700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 195-255 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org

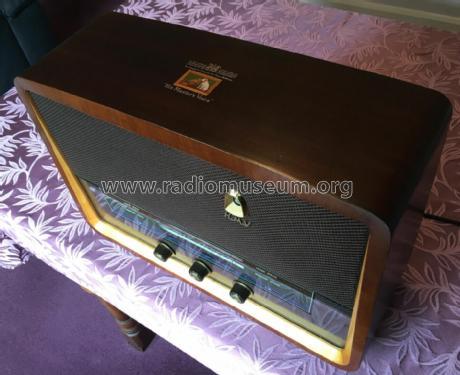

- Model: 1132 - His Master's Voice Masters,
- Shape
- Tablemodel, with any shape - general.
- Notes
- Based on model 1131, but with tuning indicator & tweeter.
