1142

1142; His Master's Voice (ID = 1030649) Radio 1142; His Master's Voice (ID = 1030650) Radio
1142; His Master's Voice (ID = 1030652) Radio 1142; His Master's Voice (ID = 1030653) Radio
Use red slider bar for more.

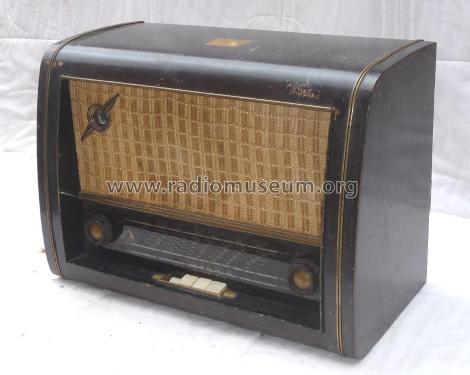

1142; His Master's Voice (ID = 1030649) Radio
His Master's Voice: 1142 [Radio] ID = 1030649 933x690
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1142, His Master's Voice (HMV, EMI); Bruxelles

Country:  Belgium
Manufacturer / Brand:  His Master's Voice (HMV, EMI); Bruxelles
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EBC41 EL41 EM34 AZ41
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 145; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: 1142 - His Master's Voice HMV, EMI;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 475 x 340 x 240 mm / 18.7 x 13.4 x 9.4 inch
Source of data -- Collector info (Sammler)

Model page created by Hugo Sneyers. See "Data change" for further contributors.



All listed radios etc. from His Master's Voice (HMV, EMI); Bruxelles
Here you find 50 models, 38 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
