AM/FM Auto Radio-Gramophone 1633

AM/FM Auto Radio-Gramophone 1633; His Master's Voice (ID = 585192) Radio

AM/FM Auto Radio-Gramophone 1633; His Master's Voice (ID = 585193) Radio
AM/FM Auto Radio-Gramophone 1633; His Master's Voice (ID = 1223293) Radio AM/FM Auto Radio-Gramophone 1633; His Master's Voice (ID = 1223292) Radio
AM/FM Auto Radio-Gramophone 1633; His Master's Voice (ID = 1223294) Radio AM/FM Auto Radio-Gramophone 1633; His Master's Voice (ID = 1223295) Radio
AM/FM Auto Radio-Gramophone 1633; His Master's Voice (ID = 1576752) Radio AM/FM Auto Radio-Gramophone 1633; His Master's Voice (ID = 1576753) Radio
AM/FM Auto Radio-Gramophone 1633; His Master's Voice (ID = 1576754) Radio AM/FM Auto Radio-Gramophone 1633; His Master's Voice (ID = 1576755) Radio
Use red slider bar for more.
AM/FM Auto Radio-Gramophone 1633; His Master's Voice (ID = 1223293) Radio

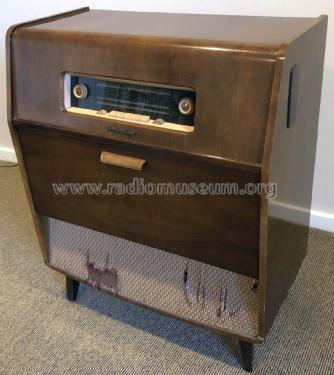

His Master's Voice: AM/FM Auto Radio-Gramophone 1633 [Radio] ID = 1223293 550x560
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Auto Radio-Gramophone 1633, His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB:
By courtesy of guest Arthur Shepherd, Banbury, Great Britain.

Country:  Great Britain (UK)
Manufacturer / Brand:  His Master's Voice (Masters, HMV, H.M.V., Marconi); Hayes, Middlesex, GB
Year: 1959 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EABC80 EL84
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out 3 W (unknown quality)
from Radiomuseum.org Model: AM/FM Auto Radio-Gramophone 1633 - His Master's Voice Masters,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 29.5 x 35 x 16 inch / 749 x 889 x 406 mm

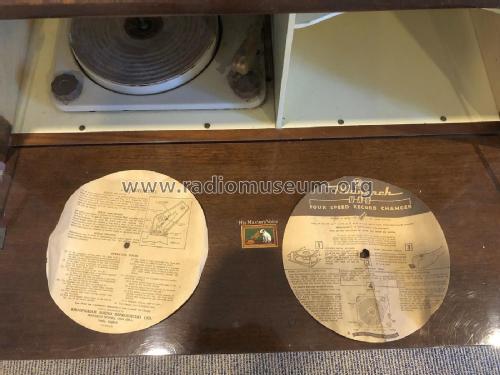

Notes Radiogram fitted with BSR type UA8 four speed record changer, crystal turnover pick-up. Provision for fitting additional amplifier & control panel to enable playing of stereo records. Similar chassis to model 1138.
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.
