Consort J8-1B Ch= J8

Consort J8-1B Ch= J8; His Master's Voice (ID = 1331835) Radio

Consort J8-1B Ch= J8; His Master's Voice (ID = 1331837) Radio
Consort J8-1B Ch= J8; His Master's Voice (ID = 2375353) Radio Consort J8-1B Ch= J8; His Master's Voice (ID = 1237331) Radio
Consort J8-1B Ch= J8; His Master's Voice (ID = 2066869) Radio Consort J8-1B Ch= J8; His Master's Voice (ID = 2094001) Radio
Consort J8-1B Ch= J8; His Master's Voice (ID = 2094002) Radio Consort J8-1B Ch= J8; His Master's Voice (ID = 2344412) Radio
Consort J8-1B Ch= J8; His Master's Voice (ID = 2344413) Radio Consort J8-1B Ch= J8; His Master's Voice (ID = 2375351) Radio
Consort J8-1B Ch= J8; His Master's Voice (ID = 2375352) Radio Consort J8-1B Ch= J8; His Master's Voice (ID = 1237330) Radio
Use red slider bar for more.
Consort J8-1B Ch= J8; His Master's Voice (ID = 2375353) Radio

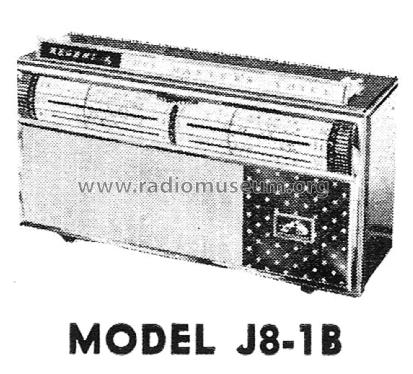

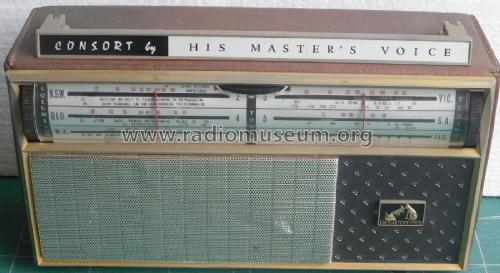

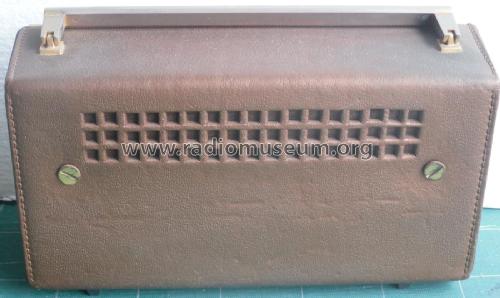

His Master's Voice: Consort J8-1B Ch= J8 [Radio] ID = 2375353 600x505
Select picture or schematic to display from thumbnails on the right and click for download.
For model Consort J8-1B Ch= J8, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:
Red Version 3d

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1962–1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC170 OC170 OC169 OC975 OC75 AC127 AC132
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Consort J8-1B Ch= J8 - His Master's Voice HMV, H.M.V.
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 10.75 x 6 x 3.5 mm / 0.4 x 0.2 x 0.1 inch
Notes

A heavy portable with a diecast front panel. Speaker is 30 ohm ellliptical measuring 6 X 4 inches. Weight is without batteries.

9 volt battery type used: Eveready 276P, Berec PP20, National 306S, Ray-O-Vac RR76P & Toshiba T306S.

There is provision for an external aerial/earth connection through a car type aerial socket on the side of the radio.

Price after the introduction of decimal currency in Australia (14/2/1966) was $60.90

See also model Consort JG-1P with the model name on the right side.



Net weight (2.2 lb = 1 kg) 5 lb 4 oz (5.25 lb) / 2.384 kg
Price in first year of sale 30.45 AUS £
Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual for Chassis Type J8.)
Literature/Schematics (2) - - Manufacturers Literature (HMV Model Sheet for J8-1B.)

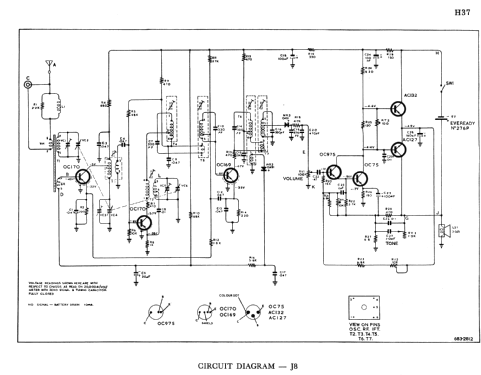

Literature/Schematics (3) J.R. Publications Transistor Radio Service Handbook (Supplement to Vol. 1, 1960, Page H14)
Literature/Schematics (4) J.R. Publications Transistor Radio Service Handbook (Handbook A Series, Page H37.)

Model page created by a member from A. See "Data change" for further contributors.
