EMI Gemini 22088

EMI Gemini 22088; His Master's Voice (ID = 2464616) Radio
Use red slider bar for more.
EMI Gemini 22088; His Master's Voice (ID = 2464616) Radio
His Master's Voice: EMI Gemini 22088 [Radio] ID = 2464616 1400x928
Select picture or schematic to display from thumbnails on the right and click for download.
For model EMI Gemini 22088, His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW:

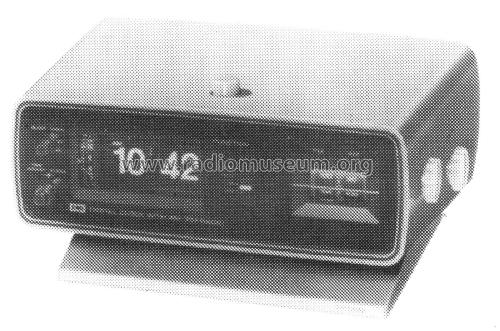

From service manual cover. Taken from original document courtesy of Andrew McCallum.

Country:  Australia
Manufacturer / Brand:  His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
Year: 1974/1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SC784 2SC785 2SC380 2SC380 2SC380 2SB54 2SB54 2SA562 2SC735 1N60 1S2236 1N60 1N60 1N60 1N60 1S1941 1S1941 1S1941 1S1941
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out
from Radiomuseum.org Model: EMI Gemini 22088 - His Master's Voice HMV, H.M.V.
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 226 x 111 x 146 inch / 5740 x 2819 x 3708 mm
Notes

EMI Model 22088 "Gemini"

  AC operated AM/FM digital clock radio with clear acrylic scale face. Attractively designed cabinet finished in white or red with black and silver trim.

Price in first year of sale 65.00 AUS $
Mentioned in Mingay's Radio Electrical Weekly Price Service (REWPS) (Feb 1975 & Aug 1975.)
Literature/Schematics (1) - - Manufacturers Literature (HMV Service Manual.)

Model page created by Martin Kent. See "Data change" for further contributors.
