• Country
• United States of America (USA)

• Manufacturer / Brand
• Hoffman Radio Corp.; Los Angeles, CA

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 140060

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6BK7B 6AB4 12AT7 6BE6 EM84 6BA6 6AU6 6AL5 ECC83 ECC83 ECC83 EL84 EL84 5U4GB

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 3 Loudspeakers

• from Radiomuseum.org
• Model: B8009 Ch= 1138 Ch= 1140 - Hoffman Radio Corp.; Los

• Notes

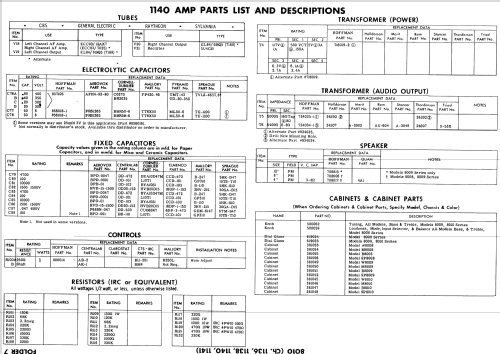

• Sams photofact set 501 folder 7 date 10-60 features the Hoffman models B8008, M8008, SP8008 and W8008 with Tunerchassis 1141 and Ampchassis 1140, the models B8009, M8009, SP8009 and W8009 with Tunerchassis 1138 and Ampchassis 1140, the models B8010, M8010, SP8010 and W8010 with Tunerchassis 1138 and Ampchassis 1135 as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 501 folder 7 date 10-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.

• Other Models

• Here you find 912 models, 212 with images and 879 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Hoffman Radio Corp.; Los Angeles, CA
