144 MHz CW/RTTY transmitter
- Great Britain (UK)
- Manufacturer / Brand
- Homebrew - ORIGINAL; GB
- Amateur Transmitter (only)
- Radiomuseum.org ID
- Number of Tubes
- Main principle
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220-240 Volt
- - - No sound reproduction output.
- Metal case
- from Radiomuseum.org
- Model: 144 MHz CW/RTTY transmitter - Homebrew - ORIGINAL; GB
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 410 x 230 x 250 mm / 16.1 x 9.1 x 9.8 inch

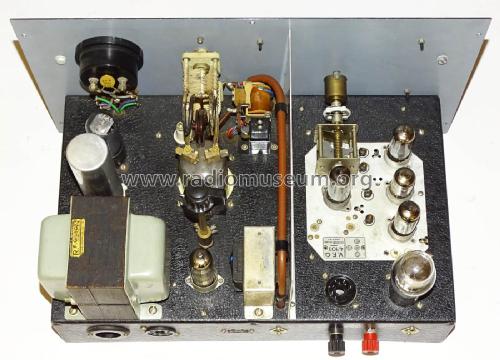

144 MHz CW/RTTY transmitter.
Home built in the UK by GM3NZI in 1962.
HT voltage 600v.
Max power input to PA 120W.
PA grid and anode current metered.
Netting and antenna switching facilities.
Modified Geloso 4/103 exciter.
Cathode keying of exciter and driver.
Eddystone 598 VFO dial.
In 1965 the transmitter was used to achieve the first 144 MHz RTTY GM-PA contact.
6CL6 12 MHz Xtal oscillator/multiplier.
6CL6 18 MHz VFO/multiplier.
QQV03/10 Push-pull driver.

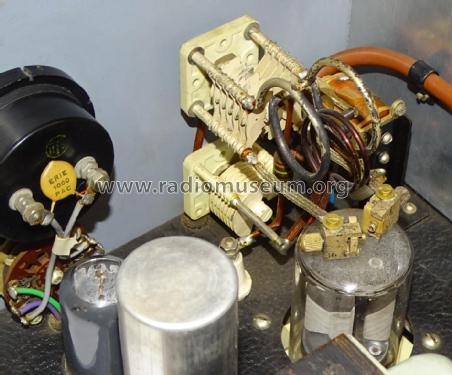

QQV06/40A Power amplifier.
6V6GT PA screen regulator.
VR150/30 Voltage regulator.
BY100 diode rectifiers.
- Net weight (2.2 lb = 1 kg)
- 11.8 kg / 25 lb 15.9 oz (25.991 lb)
- Model page created by Bruce Taylor. See "Data change" for further contributors.
