Bridge SA7310
Use red slider bar for more.
Horny Hornyphon;: Bridge SA7310 [Radio] ID = 111897 933x622

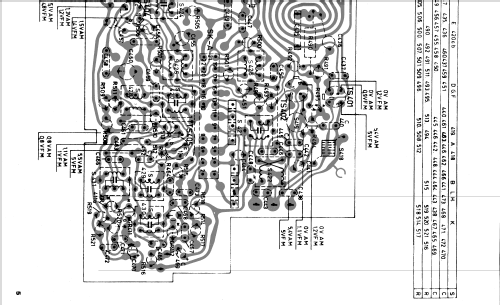

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Hornyphon | ||||
|---|---|---|---|---|---|
| Year: 1968 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 9: AF124 AF125 AF125 AF125 AF125 AC127 AC132 AC127 AC132 AA119 AA119 AA119 BA114 |
| Main principle | Superheterodyne (common); ZF/IF 460/10700 kHz |
|---|---|
| Tuned circuits | 5 AM circuit(s) 8 FM circuit(s) |
| Wave bands | Broadcast, Long Wave and FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / 5 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | 0.4 W (unknown quality) |
| from Radiomuseum.org | Model: Bridge SA7310 - Horny Hornyphon; Wien |
| Material | Plastics (no bakelite or catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Notes | Parallelgerät zum Philips 22RL382. |
| Source of data | -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb |
| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
