For model Caballero W7637, Horny (Hornyphon); Wien:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 22:
Main principle Superheterodyne (common)

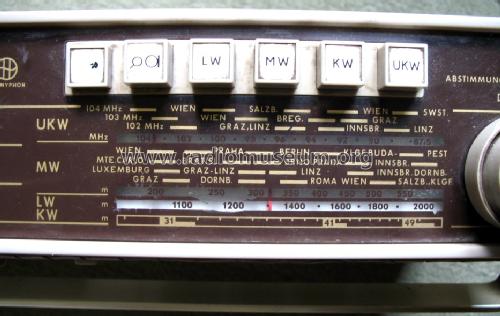

Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Dry Batteries / 5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Caballero W7637 - Horny Hornyphon; Wien
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 315 x 180 x 90 mm / 12.4 x 7.1 x 3.5 inch
Notes Anschlußmöglichkeit für Mikrofon, Plattenspieler, Kopfhörer,
Autoantenne und ext. Netzgerät (7,5 Volt).
Parallelgerät zum Philips Antoinette 03RL673

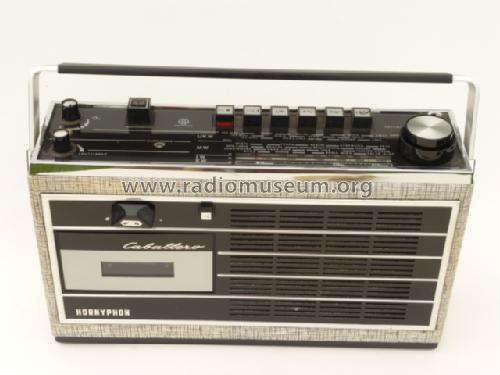

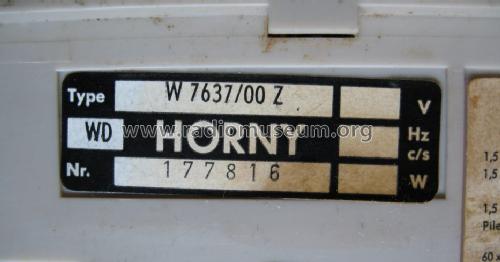

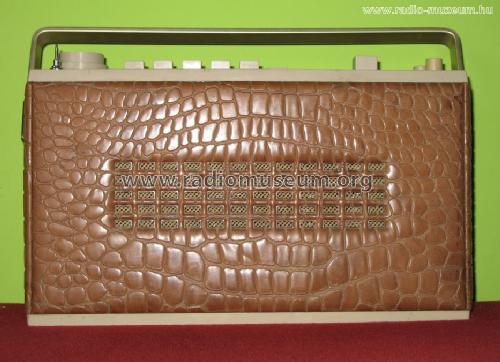

2 Ausführungen: /00Z = kroko/weich, /00S = pepita.
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Price in first year of sale 3'290.00 ATS
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

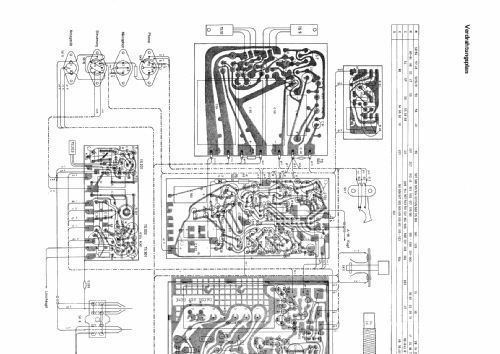

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
