Cassetten Recorder EK-3210

Cassetten Recorder EK-3210; Horny Hornyphon; (ID = 763086) R-Player

Cassetten Recorder EK-3210; Horny Hornyphon; (ID = 763087) R-Player
Cassetten Recorder EK-3210; Horny Hornyphon; (ID = 763084) R-Player
Use red slider bar for more.
Cassetten Recorder EK-3210; Horny Hornyphon; (ID = 763084) R-Player
Horny Hornyphon;: Cassetten Recorder EK-3210 [R-Player] ID = 763084 909x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassetten Recorder EK-3210, Horny (Hornyphon); Wien:

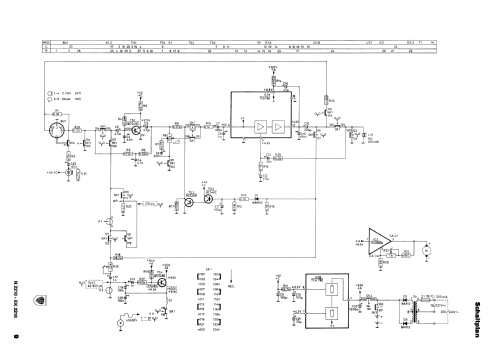

Bild aus Servicedoku.

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1977/1978 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4: BC549 BC548 BC548 BC548 TCA900
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220; 127 / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Cassetten Recorder EK-3210 - Horny Hornyphon; Wien
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 240 x 160 x 60 mm / 9.4 x 6.3 x 2.4 inch
Notes Parallelgerät zum Philips Lucky Hit '77 N2210
Eingebautes Mikrofon.
Price in first year of sale 680.00 ATS
Literature/Schematics (1) -- Original-techn. papers. (Elektrohansa Verkaufsprospekt 1978)

Model page created by Manfred Kröll † 2.9.2013. See "Data change" for further contributors.
