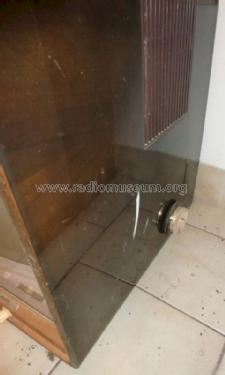

Excelsior Automatic W59T323A /00B Ch= S8
Use red slider bar for more.
Horny Hornyphon;: Excelsior Automatic W59T323A /00B Ch= S8 [Television] ID = 1833476 940x832
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Hornyphon | ||||
|---|---|---|---|---|---|
| Year: 1962 | Category: Television Receiver (TV) or Monitor | ||||
| Valves / Tubes | 23: PC88 PC86 PCC189 PCF86 EF183 EF184 EF184 PCL84 PCF80 PCF80 PCL85 PCL86 PCF80 ECH83 PCF80 ECC82 PF86 PCL85 PCF80 PL500 PY88 DY87 AW59-90 |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | VHF incl. FM and/or UHF (see notes for details) |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Excelsior Automatic W59T323A /00B Ch= S8 - Horny Hornyphon; Wien |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 585 x 505 x 400 mm / 23 x 19.9 x 15.7 inch |
| Notes | Fernsehband VHF (I+III), UHF (IV/V). 59-cm-Rechteckbildröhre. |
| Source of data | -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb |
| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
