Excelsior W59T335A /00 /70 Ch= F2N

Excelsior W59T335A /00 /70 Ch= F2N; Horny Hornyphon; (ID = 290042) Television

Excelsior W59T335A /00 /70 Ch= F2N; Horny Hornyphon; (ID = 290043) Television
Excelsior W59T335A /00 /70 Ch= F2N; Horny Hornyphon; (ID = 422630) Television Excelsior W59T335A /00 /70 Ch= F2N; Horny Hornyphon; (ID = 422631) Television
Excelsior W59T335A /00 /70 Ch= F2N; Horny Hornyphon; (ID = 153973) Television
Use red slider bar for more.

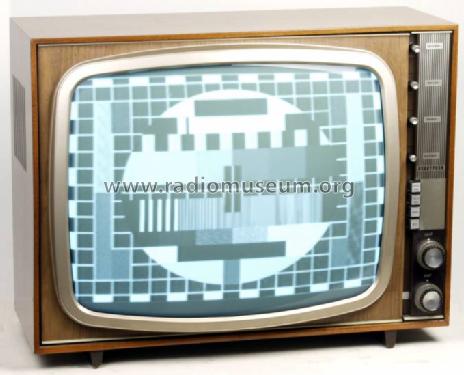

Excelsior W59T335A /00 /70 Ch= F2N; Horny Hornyphon; (ID = 422630) Television
Horny Hornyphon;: Excelsior W59T335A /00 /70 Ch= F2N [Television] ID = 422630 680x549
Select picture or schematic to display from thumbnails on the right and click for download.
For model Excelsior W59T335A /00 /70 Ch= F2N, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1966 Category: Television Receiver (TV) or Monitor
Valves / Tubes 14: PC900 PCF801 PCF201 PCF200 PCL84 PL84 PCL86 PCH200 PCL85 PCF802 PL500 PY81 DY87 A59-11W
Semiconductors (the count is only for transistors) 4: AF186 AF186 AF126 AC125
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Excelsior W59T335A /00 /70 Ch= F2N - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 695 x 505 x 395 mm / 27.4 x 19.9 x 15.6 inch
Notes

Fernsehband VHF (I+III), UHF (IV/V). 23-Zoll-Rechteckbildröhre.
2 Ausführungen:
/00= dunkel-glänzend,
/70= hell-matt.

Paralleltype zum Philips 23TA533A.

Net weight (2.2 lb = 1 kg) 30 kg / 66 lb 1.3 oz (66.079 lb)
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
