Lord 38B E643

Lord 38B E643; Horny Hornyphon; (ID = 316070) Radio

Lord 38B E643; Horny Hornyphon; (ID = 9588) Radio

Lord 38B E643; Horny Hornyphon; (ID = 1726756) Radio
Lord 38B E643; Horny Hornyphon; (ID = 1262480) Radio Lord 38B E643; Horny Hornyphon; (ID = 1335161) Radio
Lord 38B E643; Horny Hornyphon; (ID = 1335162) Radio Lord 38B E643; Horny Hornyphon; (ID = 1335163) Radio
Lord 38B E643; Horny Hornyphon; (ID = 1335164) Radio Lord 38B E643; Horny Hornyphon; (ID = 1335166) Radio
Lord 38B E643; Horny Hornyphon; (ID = 1335167) Radio Lord 38B E643; Horny Hornyphon; (ID = 1335168) Radio
Lord 38B E643; Horny Hornyphon; (ID = 1336455) Radio Lord 38B E643; Horny Hornyphon; (ID = 1336457) Radio
Use red slider bar for more.
Lord 38B E643; Horny Hornyphon; (ID = 1262480) Radio
Horny Hornyphon;: Lord 38B E643 [Radio] ID = 1262480 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lord 38B E643, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner

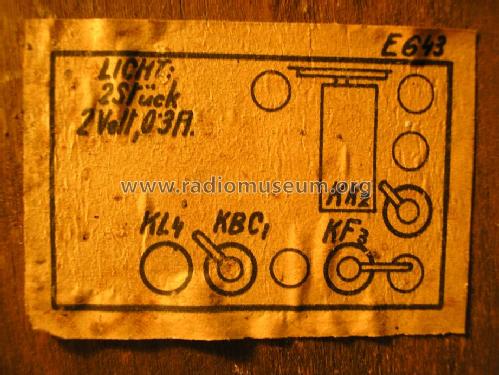

Valves / Tubes 4: KK2 KF3 KBC1 KL4
Main principle Super-Heterodyne (Super in general); ZF/IF 128 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Lord 38B E643 - Horny Hornyphon; Wien
Material Wooden case
Notes Batterie-Gerät
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
