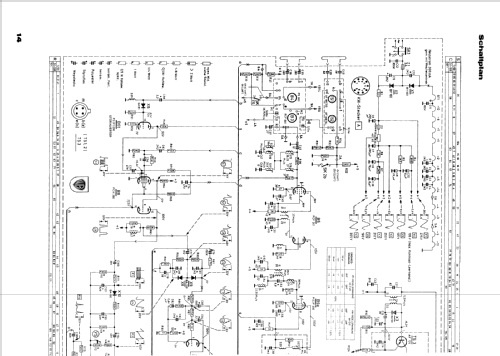

Lord W48T105A /00 /70 Ch= F2; Horny Hornyphon; (ID = 289955) Television

Lord W48T105A /00 /70 Ch= F2; Horny Hornyphon; (ID = 289957) Television

Lord W48T105A /00 /70 Ch= F2; Horny Hornyphon; (ID = 1964244) Television
Lord W48T105A /00 /70 Ch= F2; Horny Hornyphon; (ID = 153976) Television
Use red slider bar for more.
Lord W48T105A /00 /70 Ch= F2; Horny Hornyphon; (ID = 153976) Television
Horny Hornyphon;: Lord W48T105A /00 /70 Ch= F2 [Television] ID = 153976 784x624
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lord W48T105A /00 /70 Ch= F2, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1966 Category: Television Receiver (TV) or Monitor
Valves / Tubes 14: PC900 PCF801 PCF201 PCF200 PCL84 PL84 PCL86 PCH200 PCL85 PCF802 PL500 PY81 DY87 A47-11W
Semiconductors (the count is only for transistors) 3: AF186 AF186 AF126
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Lord W48T105A /00 /70 Ch= F2 - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 560 x 435 x 295 mm / 22 x 17.1 x 11.6 inch
Notes

Fernsehband VHF (I+III), UHF (IV/V). 19-Zoll-Rechteckbildröhre.

2 Ausführungen:
/00 = dunkel-glänzend,
/70 = hell-matt.

Parallelgerät zum Philips 19TA501A.

Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
