Olympic Automatic Console W59K243A /01B Ch= S8a

Olympic Automatic Console W59K243A /01B Ch= S8a; Horny Hornyphon; (ID = 248702) Television

Olympic Automatic Console W59K243A /01B Ch= S8a; Horny Hornyphon; (ID = 248703) Television

Olympic Automatic Console W59K243A /01B Ch= S8a; Horny Hornyphon; (ID = 251523) Television

Olympic Automatic Console W59K243A /01B Ch= S8a; Horny Hornyphon; (ID = 1984230) Television
Olympic Automatic Console W59K243A /01B Ch= S8a; Horny Hornyphon; (ID = 140287) Television
Use red slider bar for more.
Olympic Automatic Console W59K243A /01B Ch= S8a; Horny Hornyphon; (ID = 140287) Television
Horny Hornyphon;: Olympic Automatic Console W59K243A /01B Ch= S8a [Television] ID = 140287 496x656
Select picture or schematic to display from thumbnails on the right and click for download.
For model Olympic Automatic Console W59K243A /01B Ch= S8a, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1962/1963 Category: Television Receiver (TV) or Monitor
Valves / Tubes 23: PC88 PC86 PCC189 PCF86 EF183 EF184 EF184 PCL84 PCF80 PCF80 PCL85 PCL86 PCF80 ECH83 PCF80 ECC82 PF86 PCL85 PCF80 PL500 PY88 DY87 A59-16W
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Olympic Automatic Console W59K243A /01B Ch= S8a - Horny Hornyphon; Wien
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Dimensions (WHD) 711 x 1055 x 380 mm / 28 x 41.5 x 15 inch
Notes

Fernsehband VHF (I+III), UHF (IV/V). 59-cm-Rechteckbildröhre.
Ausführungen: Kassette dunkel und hell.
Modell mit nur UHF-Vorbereitung 7370.- öS.
Kabelfernbedienung AT6320/03.
Wie Olympic Automatic W59T243A/01B aber mit Standbeinen.

Price in first year of sale 7'970.00 öS
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert

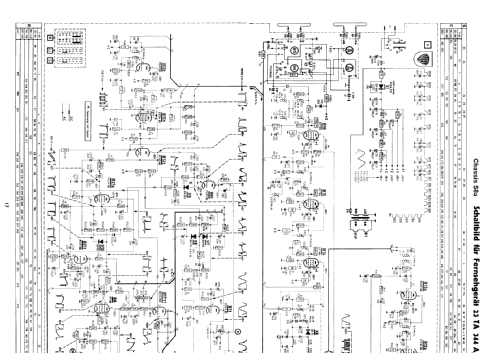

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
