Olympic Automatic WT2331A /00 Ch= S7

Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 248241) Television

Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 248242) Television

Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 251508) Television

Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 2537700) Television
Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 1607333) Television Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 1607339) Television
Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 1607340) Television Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 1607334) Television
Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 1607335) Television Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 1607336) Television
Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 1607337) Television Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 1607338) Television
Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 1607341) Television Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 1607342) Television
Use red slider bar for more.

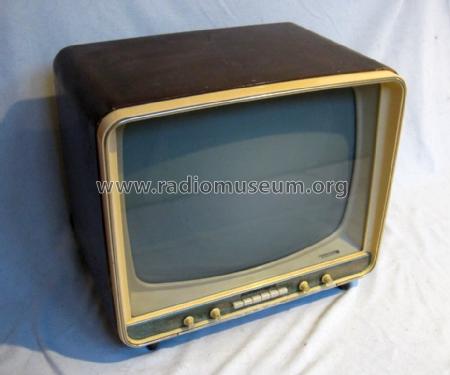

Olympic Automatic WT2331A /00 Ch= S7; Horny Hornyphon; (ID = 1607333) Television
Horny Hornyphon;: Olympic Automatic WT2331A /00 Ch= S7 [Television] ID = 1607333 933x776
Select picture or schematic to display from thumbnails on the right and click for download.
For model Olympic Automatic WT2331A /00 Ch= S7, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1960 Category: Television Receiver (TV) or Monitor

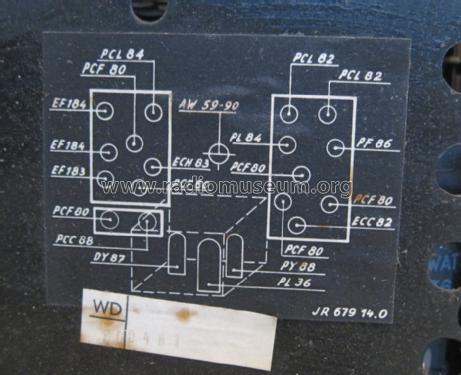

Valves / Tubes 21: PCC88 PCF80 EF183 EF184 EF184 PCL84 PCF80 PCF80 PL84 PCL82 PCF80 ECH83 PCF80 PF86 PCL82 PCF80 ECC82 PL36 PY88 DY87 AW59-90
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details

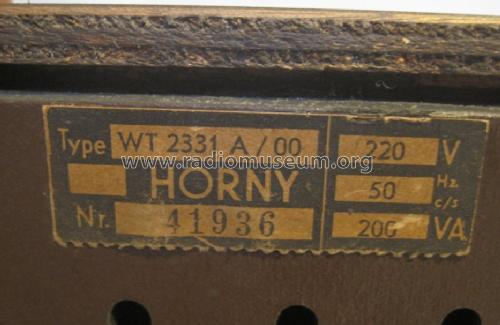

Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Olympic Automatic WT2331A /00 Ch= S7 - Horny Hornyphon; Wien
Material Various materials

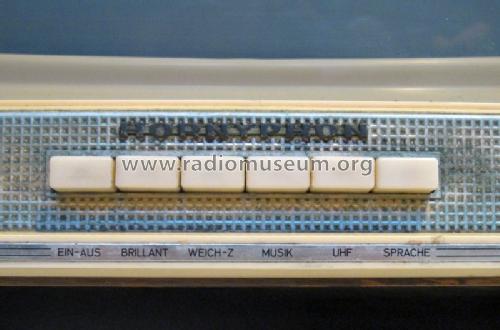

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 580 x 520 x 460 mm / 22.8 x 20.5 x 18.1 inch
Notes

Fernsehband VHF (I+III), UHF vorbereitet. 59-cm-Rechteckbildröhre.

Parallelgerät zum Philips 23TA311A/00.

Net weight (2.2 lb = 1 kg) 27 kg / 59 lb 7.5 oz (59.471 lb)
Source of data Radiokatalog Band 2, Ernst Erb

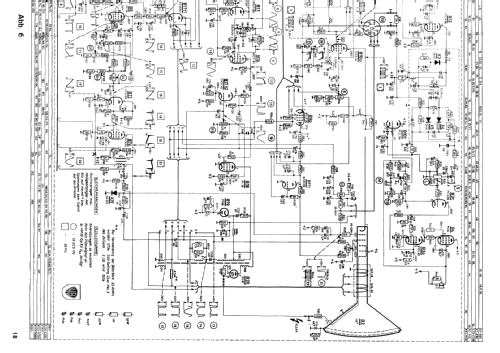

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
