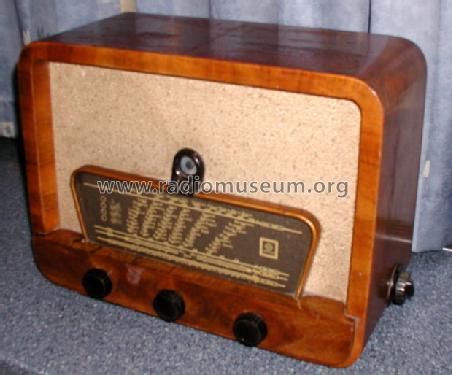

Prinz 51 W550A

Prinz 51 W550A; Horny Hornyphon; (ID = 64856) Radio

Prinz 51 W550A; Horny Hornyphon; (ID = 64858) Radio

Prinz 51 W550A; Horny Hornyphon; (ID = 64859) Radio

Prinz 51 W550A; Horny Hornyphon; (ID = 64857) Radio
Prinz 51 W550A; Horny Hornyphon; (ID = 134498) Radio Prinz 51 W550A; Horny Hornyphon; (ID = 134499) Radio
Prinz 51 W550A; Horny Hornyphon; (ID = 149619) Radio Prinz 51 W550A; Horny Hornyphon; (ID = 1690) Radio
Prinz 51 W550A; Horny Hornyphon; (ID = 149616) Radio Prinz 51 W550A; Horny Hornyphon; (ID = 149617) Radio
Prinz 51 W550A; Horny Hornyphon; (ID = 149621) Radio Prinz 51 W550A; Horny Hornyphon; (ID = 337040) Radio
Prinz 51 W550A; Horny Hornyphon; (ID = 567961) Radio Prinz 51 W550A; Horny Hornyphon; (ID = 567963) Radio
Use red slider bar for more.
Prinz 51 W550A; Horny Hornyphon; (ID = 134498) Radio
Horny Hornyphon;: Prinz 51 W550A [Radio] ID = 134498 679x557
Select picture or schematic to display from thumbnails on the right and click for download.
For model Prinz 51 W550A, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UAF42 UBC41 UL41 UM4 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Prinz 51 W550A - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 310 x 200 mm / 16.9 x 12.2 x 7.9 inch
Notes Parallelgerät zum Philips BA501A und Zerdik Z550A.
Net weight (2.2 lb = 1 kg) 7.8 kg / 17 lb 2.9 oz (17.181 lb)
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
