Prinz 51 W550U; Horny Hornyphon; (ID = 500889) Radio
Horny Hornyphon;: Prinz 51 W550U [Radio] ID = 500889 933x671
Select picture or schematic to display from thumbnails on the right and click for download.
For model Prinz 51 W550U, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UAF42 UBC41 UL41 UM4 UY41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set / 110; 130; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Prinz 51 W550U - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 310 x 200 mm / 16.9 x 12.2 x 7.9 inch
Notes

Parallelgerät zum Philips Adagio 51 BA501U und Zerdik Weltmeister 51 Z550U.

Gleicher Röhrensatz in Allstrom- und Wechselstromausführung

Net weight (2.2 lb = 1 kg) 6.8 kg / 14 lb 15.6 oz (14.978 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

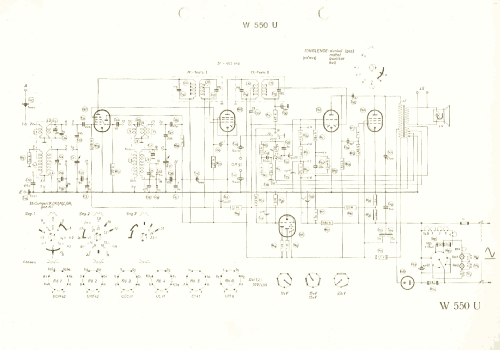

Circuit diagram reference Unterlagen E.Erb

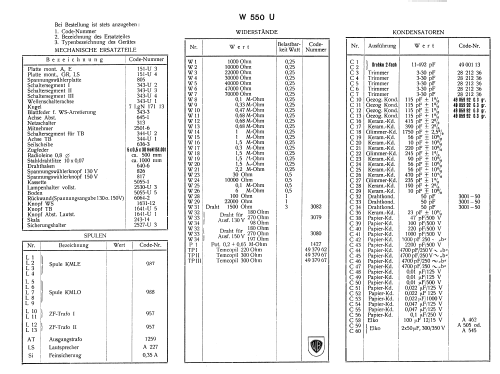

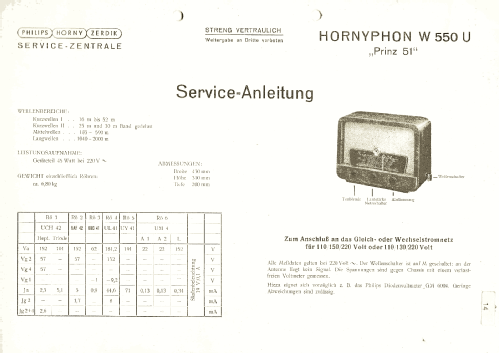

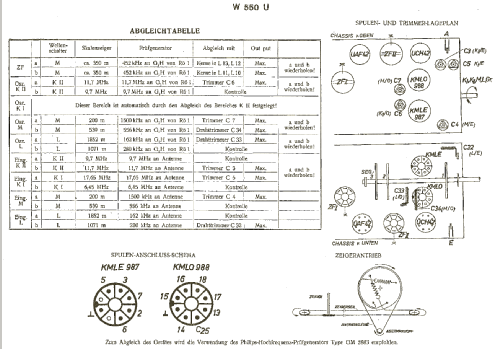

Literature/Schematics (1) -- Original-techn. papers.

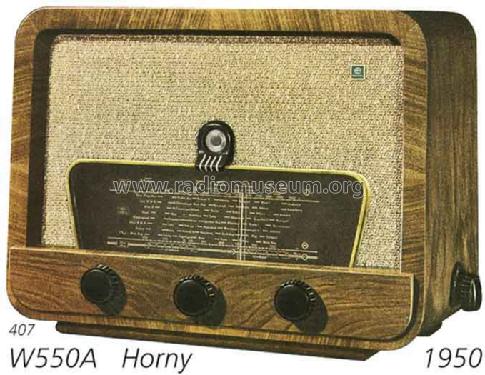

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
