SA5248A/00

SA5248A/00; Horny Hornyphon; (ID = 784203) Radio SA5248A/00; Horny Hornyphon; (ID = 784205) Radio
SA5248A/00; Horny Hornyphon; (ID = 784206) Radio SA5248A/00; Horny Hornyphon; (ID = 784204) Radio
SA5248A/00; Horny Hornyphon; (ID = 784207) Radio SA5248A/00; Horny Hornyphon; (ID = 1183483) Radio
SA5248A/00; Horny Hornyphon; (ID = 1183485) Radio SA5248A/00; Horny Hornyphon; (ID = 1183486) Radio
SA5248A/00; Horny Hornyphon; (ID = 1183490) Radio SA5248A/00; Horny Hornyphon; (ID = 1183492) Radio
Use red slider bar for more.
SA5248A/00; Horny Hornyphon; (ID = 784203) Radio
Horny Hornyphon;: SA5248A/00 [Radio] ID = 784203 932x477
Select picture or schematic to display from thumbnails on the right and click for download.
For model SA5248A/00, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: ECC85 ECH81 EF184 EAF801 EM87 EM87 ECC83 ECC808 ECC808 ELL80 ELL80
Semiconductors (the count is only for transistors) 4: AF126 AF126 AC126 AC126
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt

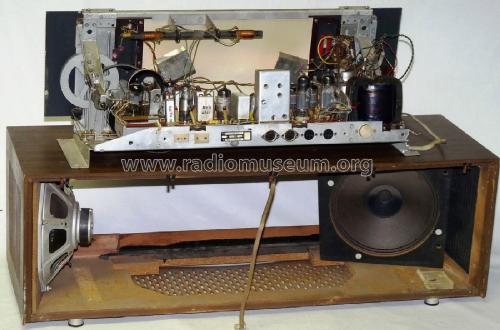

Loudspeaker 2 Loudspeakers / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: SA5248A/00 - Horny Hornyphon; Wien
Material Wooden case

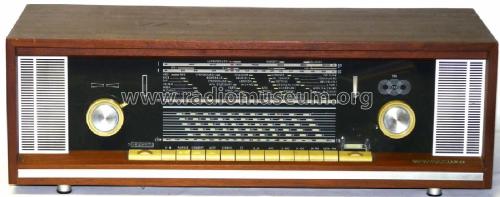

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 731 x 242 x 246 mm / 28.8 x 9.5 x 9.7 inch
Notes Stereo Radio. Klangregler und Klangtasten, AFC Taste.
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)

Model page created by Karl Günther Goldsteiner. See "Data change" for further contributors.



All listed radios etc. from Horny (Hornyphon); Wien
Here you find 867 models, 774 with images and 584 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
