Siesta WL499T
Horny Hornyphon;: Siesta WL499T [Radio] ID = 82710 662x533
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Hornyphon | ||||
|---|---|---|---|---|---|
| Year: 1959/1960 | Category: Broadcast Receiver - or past WW2 Tuner | ||||

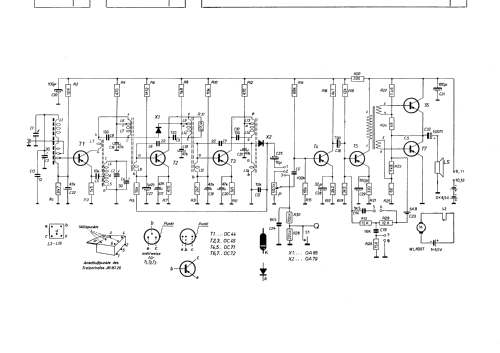

| Semiconductors (the count is only for transistors) | 7: OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA79 OA85 |
| Main principle | Superheterodyne (common); ZF/IF 460 kHz |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast only (MW). |

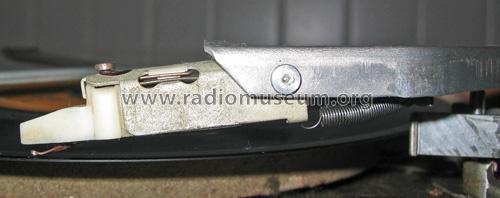

| Details | Record Player (perh.Changer) |

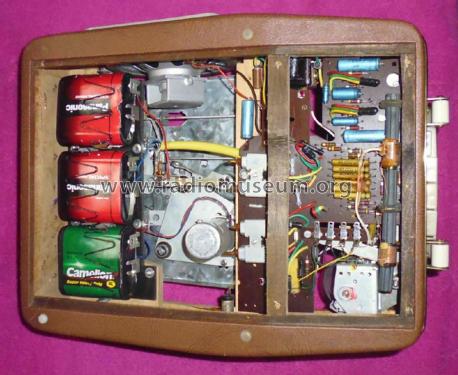

| Power type and voltage | Dry Batteries / 3x4,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | |
| from Radiomuseum.org | Model: Siesta WL499T - Horny Hornyphon; Wien |
| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 250 x 145 x 320 mm / 9.8 x 5.7 x 12.6 inch |
| Notes | Ähnlich wie WL498T , aber goldfarbenes Elox-Streckmetall mit Kunststoffrahmen statt Lochblech als LS-Abdeckung. Rund-LS (40 Ohm) statt oval. Siehe Details in Museums-Bote 115-15. |
| Net weight (2.2 lb = 1 kg) | 3.8 kg / 8 lb 5.9 oz (8.37 lb) |
| Price in first year of sale | 1'750.00 öS |
| External source of data | E. Erb 3-907007-36-0 |
| Source of data | Radiokatalog Band 2, Ernst Erb |
| Mentioned in | Museums Bote, Österr. (Heft 115/2002, S.13 ff, Gerätebeschreibung) |
| Literature/Schematics (1) | -- Original-techn. papers. |
