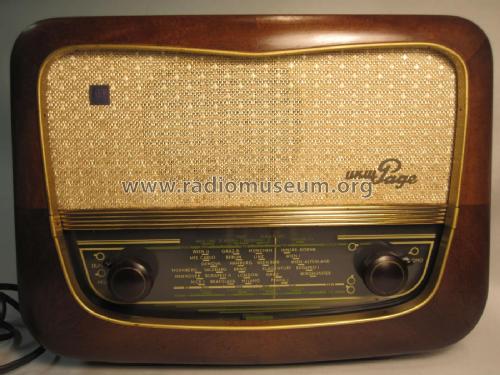

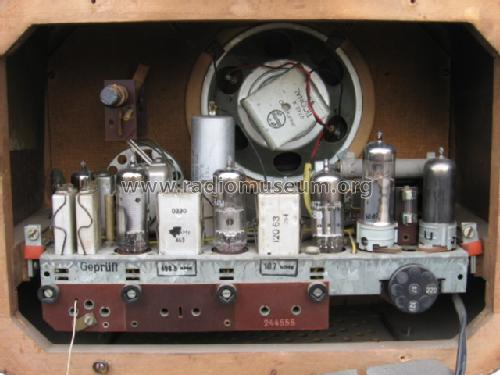

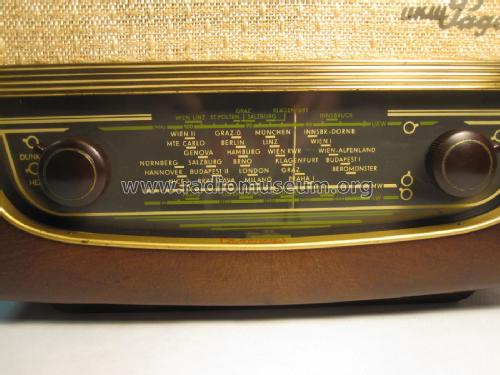

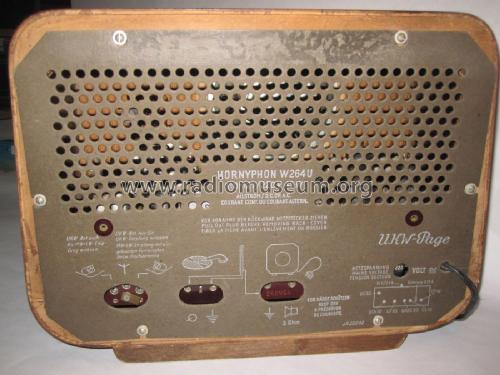

For model UKW-Page W264U, Horny (Hornyphon); Wien:
Sammlung

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UC92 UCH81 UF85 UABC80 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 458 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage AC/DC-set / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: UKW-Page W264U - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 350 x 260 x 160 mm / 13.8 x 10.2 x 6.3 inch
Notes Frequenzbereiche: UKW 87,5...100 MHz; MW 185...580 kHz; LW 1100...2000 kHz. Anschluß für Plattenspieler und ext Lautsprecher (5 Ohm). Skalenlampe 12V/0,1A. Schema = März 1954
Price in first year of sale 1'325.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
Literature/Schematics (1) -- Original-techn. papers.
