• Year
  • 1941/1942
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 8799
    • Brand: Hornyphon

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110, 125, 150, 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org

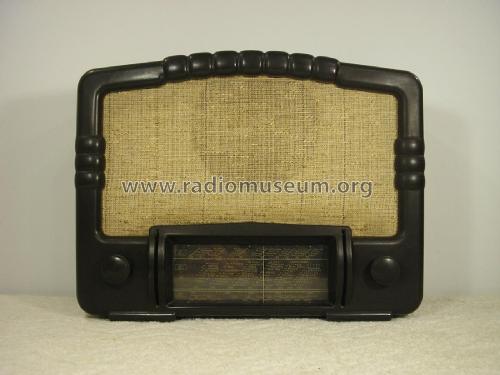

  • Model: W37LS - Horny Hornyphon; Wien
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Gleiches Chassis wie W137LS aber ohne Plattenspieleranschluß und anderes Gehäuse.
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung
  • Literature/Schematics (1)
  • -- Original-techn. papers.
