Maestro W548X
Horny (Hornyphon); Wien
- Country
- Austria
- Manufacturer / Brand
- Horny (Hornyphon); Wien
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 8833
-
- Brand: Hornyphon
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- AC/DC-set / 110, 125, 150, 220, 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Maestro W548X - Horny Hornyphon; Wien
- Shape

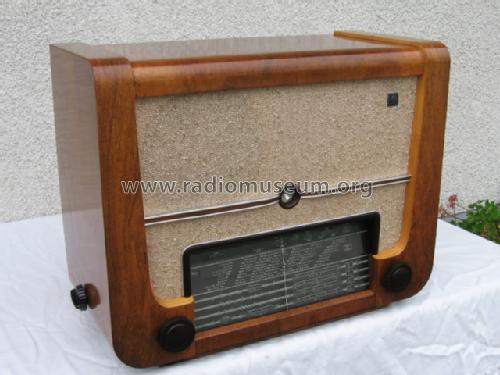

- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 540 x 430 x 250 mm / 21.3 x 16.9 x 9.8 inch

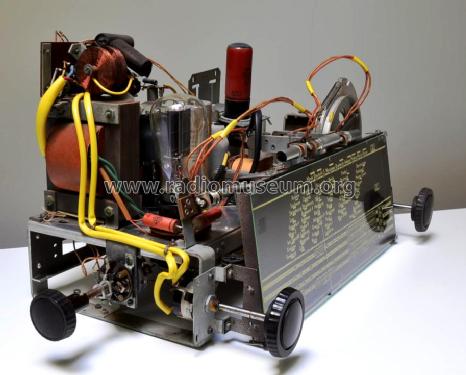

- Notes

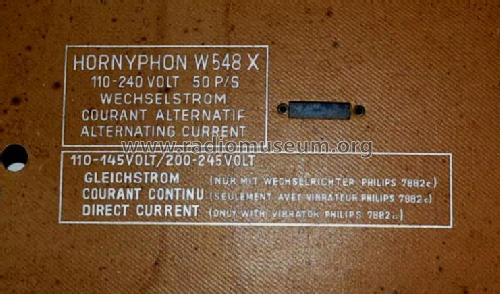

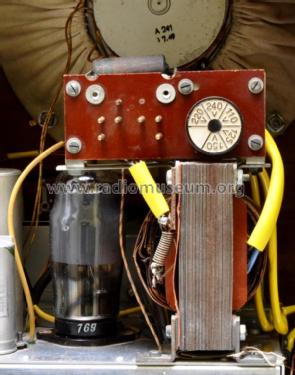

- Das Gerät ist ein Wechselstromgerät (E-Röhren) und kann mit dem Wechselrichter 7882c auch am Gleichstromnetz betrieben werden (110-145/200-245 V).
Netztrafo mit Anschluss für den Wechselrichter.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 2,030.00 ATS
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Unterlagen E.Erb
