• Country
• France

• Manufacturer / Brand
• Hudson; Paris

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 256605

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF3 AB2 AL4 AZ1

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

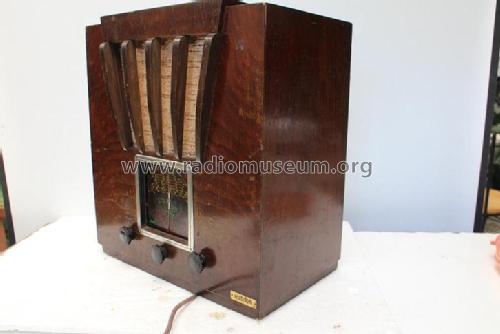

• Model: E37 - Hudson; Paris

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 410 x 450 x 260 mm / 16.1 x 17.7 x 10.2 inch

• Notes

• Haut-parleur marque Ge-Go (G. Gogny).

  Prix en 1937 : 1100 Fr.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 925.00 FRF

• Mentioned in
• Le Haut-Parleur (No 586, 08.11.1936)

• Literature/Schematics (1)

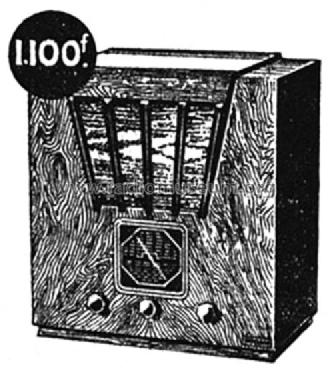

• -- Original prospect or advert (Le Petit Journal, 08.11.1937)

• Author
• Model page created by Manuel Albano Neves. See "Data change" for further contributors.
