Superhuth IV (4)

Superhuth IV ; Huth, Signalbau AG, (ID = 7091) Radio

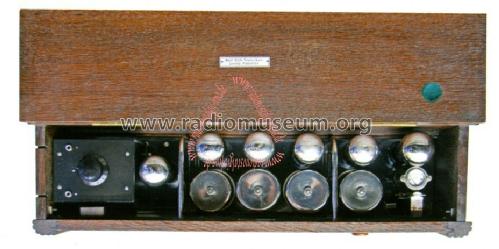

Superhuth IV ; Huth, Signalbau AG, (ID = 533992) Radio Superhuth IV ; Huth, Signalbau AG, (ID = 691928) Radio
Superhuth IV ; Huth, Signalbau AG, (ID = 59376) Radio
Use red slider bar for more.
Superhuth IV ; Huth, Signalbau AG, (ID = 533992) Radio
Huth, Signalbau AG,: Superhuth IV [Radio] ID = 533992 933x611
Select picture or schematic to display from thumbnails on the right and click for download.
For model Superhuth IV (4), Huth, Signalbau AG, Dr. Erich F. Huth (Signalbau Huth); Berlin später auch Hannover:
Ausstellung Heiligenstadt, Liesenfeld.

Country:  Germany
Manufacturer / Brand:  Huth, Signalbau AG, Dr. Erich F. Huth (Signalbau Huth); Berlin später auch Hannover
alternative name

Ges. für Funkentelegraphie mbH
Brand
Signalbau Huth
Year: 1926/1927 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: H406 H406 H406 A408 N406 L413
Conflicting model year with tube data.
The model date contradicts tube dates. [ L413 (1928) N406 (1927)]
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Superhuth IV - Huth, Signalbau AG, Dr. Erich
Material Wooden case
Notes für Rahmen;ist [509]? [8-118]
Price in first year of sale 668.00 RM
External source of data E. Erb 3-907007-36-0
Source of data Vox-Haus, Katalog 1926/1927 / Radiokatalog Band 2, Ernst Erb
Mentioned in Funkgeschichte der GFGF (9285)
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.


All listed radios etc. from Huth, Signalbau AG, Dr. Erich F. Huth (Signalbau Huth); Berlin später auch Hannover
Here you find 112 models, 74 with images and 21 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
