• Country
• Spain

• Manufacturer / Brand
• Iberia Radio SA; Barcelona

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94809

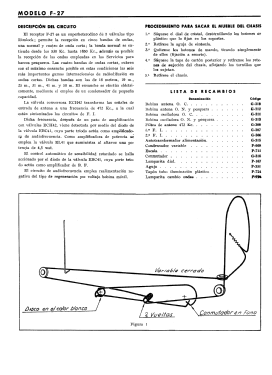

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20.4 cm = 8 inch

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: F-27 [Radiogramola] - Iberia Radio SA; Barcelona

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 480 x 320 x 450 mm / 18.9 x 12.6 x 17.7 inch

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Price in first year of sale
• 5,218.00 Pts

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

• Other Models

• Here you find 243 models, 198 with images and 171 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Iberia Radio SA; Barcelona
