• Country
• Spain

• Manufacturer / Brand
• Iberia Radio SA; Barcelona

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127943

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 ECH42 EAF42 EAF42 EL41 AZ41

• Main principle
• Superhet with RF-stage; ZF/IF ~3000 / 472 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

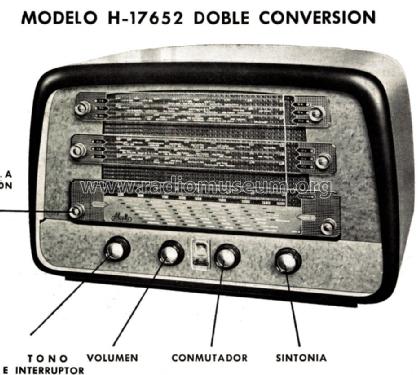

• Model: H-17652 - Iberia Radio SA; Barcelona

• Shape
• Tablemodel, low profile (big size).

• Notes
• 8 bandas: Onda media, Pesquera (1600-2200 kHz.)y 6 ondas cortas.
  Primera FI variable de 2,65 a 3,25 MHz.

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Antonio Abeledo Castro. See "Data change" for further contributors.
