Barcarole R2362 Ch= Opus 9

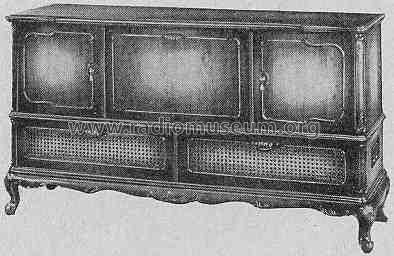

Barcarole R2362 Ch= Opus 9; Ilse-Werke, Ilse & (ID = 772193) Radio Barcarole R2362 Ch= Opus 9; Ilse-Werke, Ilse & (ID = 317205) Radio
Use red slider bar for more.
Barcarole R2362 Ch= Opus 9; Ilse-Werke, Ilse & (ID = 772193) Radio
Ilse-Werke, Ilse &: Barcarole R2362 Ch= Opus 9 [Radio] ID = 772193 780x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Barcarole R2362 Ch= Opus 9, Ilse-Werke, Ilse & Co.; Uslar:
Q: Ilse, Katalog 1959

Country:  Germany
Manufacturer / Brand:  Ilse-Werke, Ilse & Co.; Uslar
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EF89 EM84 EABC80 EC92 EL84 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker 4 Loudspeakers
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Barcarole R2362 Ch= Opus 9 - Ilse-Werke, Ilse & Co.; Uslar
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1430 x 820 x 420 mm / 56.3 x 32.3 x 16.5 inch
Notes Rundfunk-Chassis = TFK Opus 9;
Phono-Chassis = TFK TW562;
Tonband-Chassis (auf Wunsch gegen Mehrpreis von 640,- DM) = AEG Magnetophon 75T.
Net weight (2.2 lb = 1 kg) 68 kg / 149 lb 12.5 oz (149.78 lb)
Price in first year of sale 1'680.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1959/60 / Radiokatalog Band 2, Ernst Erb
