• Country
• Italy

• Manufacturer / Brand
• Imca Radio; Alessandria

• Year
• 1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155425

• Number of Tubes
• 8

• Valves / Tubes
• 6D6 6L7 76 6D6 EM4 75 42 80

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-275 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

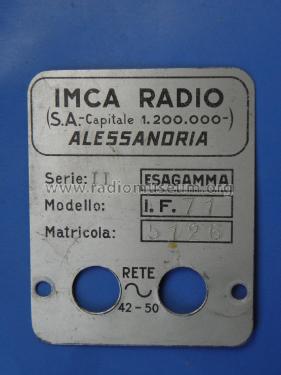

• Model: Esagamma IF71 - Imca Radio; Alessandria

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 710 x 360 x 360 mm / 28 x 14.2 x 14.2 inch

• Notes
• Gamme: OL-OM-4 X OC. Modello con occhio magico.

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Author
• Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.
