Esagamma IF71 (IV Serie)

Esagamma IF71; Imca Radio; (ID = 258695) Radio
Esagamma IF71; Imca Radio; (ID = 74994) Radio Esagamma IF71; Imca Radio; (ID = 74995) Radio
Esagamma IF71; Imca Radio; (ID = 74996) Radio Esagamma IF71; Imca Radio; (ID = 74997) Radio
Esagamma IF71; Imca Radio; (ID = 1910031) Radio
Use red slider bar for more.

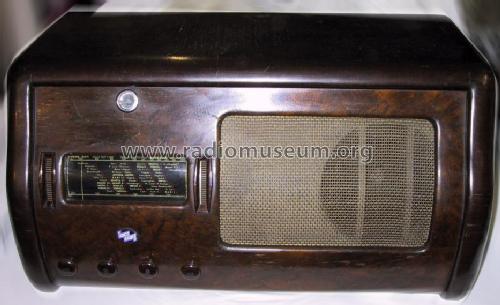

Esagamma IF71; Imca Radio; (ID = 74994) Radio
Imca Radio;: Esagamma IF71 [Radio] ID = 74994 933x570
Select picture or schematic to display from thumbnails on the right and click for download.
For model Esagamma IF71 (IV Serie), Imca Radio; Alessandria:
IF 71 Esagamma

Country:  Italy
Manufacturer / Brand:  Imca Radio; Alessandria
Year: 1940–1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EF8 ECH3 76 EF9 EM4 75 42 5Y3 or 80
Main principle Super-Heterodyne (Super in general); ZF/IF 467 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-275 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: Esagamma IF71 - Imca Radio; Alessandria
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 710 x 420 x 380 mm / 28 x 16.5 x 15 inch
Notes

Gamme d'onda: medie, lunghe e 4 corte. A richiesta, venduto anche con la gamma delle onde medie suddivise in due gamme, senza le onde lunghe.

Net weight (2.2 lb = 1 kg) 23 kg / 50 lb 10.6 oz (50.661 lb)
Price in first year of sale 3,400.00 ITL
Collectors' prices
Mentioned in -- Original prospect or advert
Literature/Schematics (1) Il Radio Libro, (Ravalico) 8.Ed.

Model page created by Alessandro De Poi. See "Data change" for further contributors.
