Steuergerät Ch= J 664
 |
 |
 |
Use red slider bar for more.

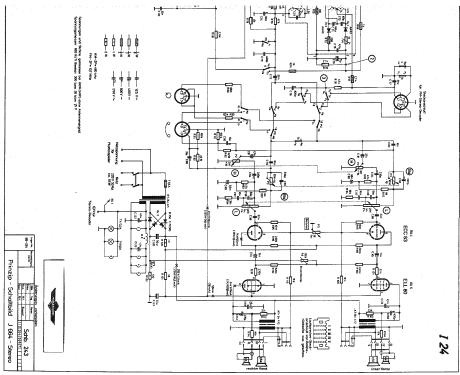

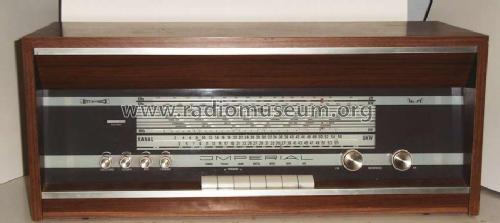

Imperial Rundfunk: Steuergerät Ch= J 664 [Radio] ID = 558998 933x417
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1965 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: ECC85 ECH81 EAF801 ECC83 EM84 ELL80 | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | 1: AF137 AA113 AA113 |
| Main principle | Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) 12 FM circuit(s) |
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | |
| from Radiomuseum.org | Model: Steuergerät Ch= J 664 - Imperial Rundfunk und Fernseh |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 620 x 255 x 270 mm / 24.4 x 10 x 10.6 inch |
| Notes | Entspricht Imperial Stereo-Super 664, aber ohne eingebaute Lautsprecher; NF-Stereo mit 2 x 3W. |
