• Country
• Germany

• Manufacturer / Brand
• Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 340997

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM84 EC92 ECL82 ECL82

• Number of Transistors

• Semiconductors
• B250C100

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 235 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

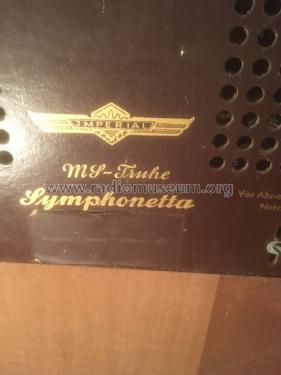

• Model: Symphonetta MS-Truhe Ch= Vollstereo 609 - Imperial Rundfunk und Fernseh

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1650 x 990 x 420 mm / 65 x 39 x 16.5 inch

• Notes

• Radiochassis Imperial 609 Vollstereo

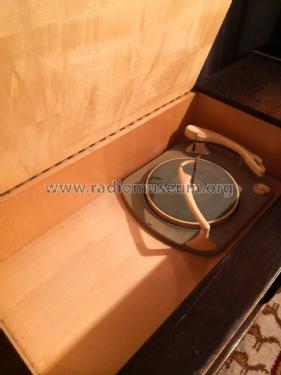

  Plattenwechsler Telefunken TW 501 Stereo

• Author
• Model page created by Florian Henkel. See "Data change" for further contributors.
