• Country
• Germany

• Manufacturer / Brand
• Imperial Rundfunk und Fernseh (Kuba-Imperial, auch General Electric); Osterode/Harz, Hemmingen

• Year
• 1961–1963

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 105417

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• PC88 PC86

• Main principle
• RF Converter/Adapter (not voltage converter)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

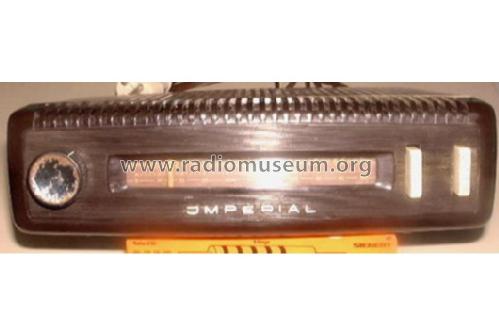

• Model: UHF-Konverter DT7/1 - Imperial Rundfunk und Fernseh

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 265 x 75 x 180 mm / 10.4 x 3 x 7.1 inch

• Notes

• UHF-Konverter zum Anschluss an Fernsehgeräte
  Umsetzung der UHF-Kanäle auf die VHF-Kanäle 3 oder 4
  Vertrieb auch unter den Markennamen Kuba und Simonetta.

  See also models MABA Gebr. MARBACH and KUBA.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Price in first year of sale
• 170.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
