LV43

LV43; Incar S.r.l.; (ID = 252699) Radio
LV43; Incar S.r.l.; (ID = 448825) Radio LV43; Incar S.r.l.; (ID = 1107608) Radio
Use red slider bar for more.
LV43; Incar S.r.l.; (ID = 448825) Radio
Incar S.r.l.;: LV43 [Radio] ID = 448825 864x583
Select picture or schematic to display from thumbnails on the right and click for download.
For model LV43, Incar S.r.l.; Vercelli:
Foto per cortesia di L.Bonetti

Country:  Italy
Manufacturer / Brand:  Incar S.r.l.; Vercelli
Year: 1945/1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH4 EF9 EBC3 EL3 AZ1
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: LV43 - Incar S.r.l.; Vercelli
Material Wooden case
Shape Tablemodel, low profile (big size).

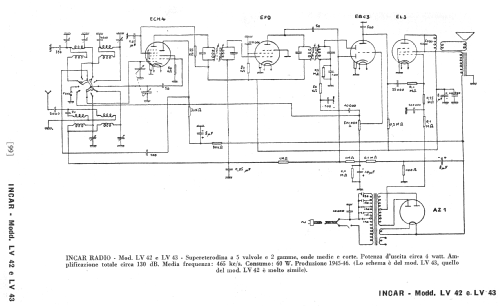

Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 99)
Literature/Schematics (2) Il Radio Libro, (Ravalico) 8.Ed. (Il Radio Libro (D.E. Ravalico) 1947)

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Incar S.r.l.; Vercelli
Here you find 86 models, 49 with images and 43 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
