LV54
Use red slider bar for more.

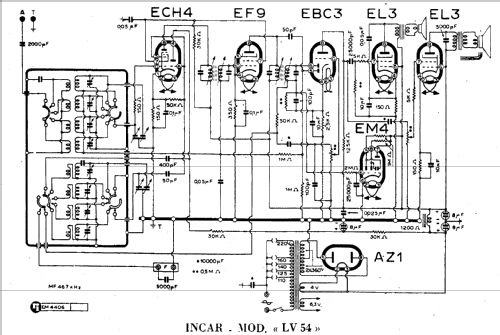

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1946 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 7: ECH4 EF9 EBC3 EL3 EM4 EL3 AZ1 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 467 kHz |
|---|---|
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt |
| Loudspeaker | 2 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: LV54 - Incar S.r.l.; Vercelli |
| Literature/Schematics (1) | Il Manuale del Radiomeccanico (vol.2°) |
Model page created by Eduard Abfalterer. See "Data change" for further contributors.
All listed radios etc. from Incar S.r.l.; Vercelli
Here you find 86 models, 49 with images and 43 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
