LV57

LV57; Incar S.r.l.; (ID = 346639) Radio
LV57; Incar S.r.l.; (ID = 849446) Radio LV57; Incar S.r.l.; (ID = 2007980) Radio
LV57; Incar S.r.l.; (ID = 2007981) Radio
Use red slider bar for more.
LV57; Incar S.r.l.; (ID = 849446) Radio

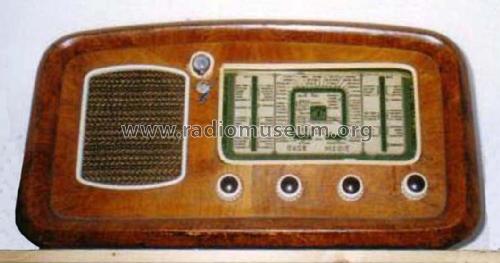

Incar S.r.l.;: LV57 [Radio] ID = 849446 717x538
Select picture or schematic to display from thumbnails on the right and click for download.
For model LV57, Incar S.r.l.; Vercelli

Country:  Italy
Manufacturer / Brand:  Incar S.r.l.; Vercelli
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH4 EF9 EBC3 EL41 EM4 AZ41
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: LV57 - Incar S.r.l.; Vercelli
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Nello schema presente sono invertite le indicazioni della EM4 e della AZ41.

Source of data Guida Pratica Antique Radio II (2000)
Literature/Schematics (1) Schemi di Apparecchi Radio D. E. Ravalico 1953

Model page created by Alessandro De Poi. See "Data change" for further contributors.
