VZ520
Use red slider bar for more.

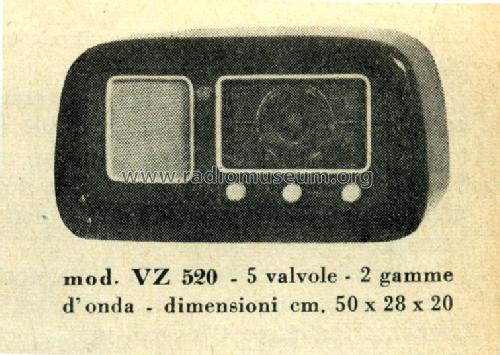

Incar S.r.l.;: VZ520 [Radio] ID = 2669007 1400x855
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1952 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: UCH42 UF41 UBC41 UL41 UY41 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 470 kHz |
|---|---|
| Wave bands | Broadcast and Short Wave (SW). |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 120; 160; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: VZ520 - Incar S.r.l.; Vercelli |
| Dimensions (WHD) | 500 x 280 x 200 mm / 19.7 x 11 x 7.9 inch |
| Literature/Schematics (1) | Il Manuale del Radiomeccanico (Vol.3°) |
| Literature/Schematics (2) | D.E. Ravalico, Il Radiolibro, 13° edizione, 1952, Hoepli |
Model page created by Eduard Abfalterer. See "Data change" for further contributors.
