VZ522

VZ522; Incar S.r.l.; (ID = 948372) Radio
VZ522; Incar S.r.l.; (ID = 647581) Radio VZ522; Incar S.r.l.; (ID = 1720298) Radio
VZ522; Incar S.r.l.; (ID = 647582) Radio VZ522; Incar S.r.l.; (ID = 1720304) Radio
Use red slider bar for more.
VZ522; Incar S.r.l.; (ID = 647581) Radio
Incar S.r.l.;: VZ522 [Radio] ID = 647581 933x601
Select picture or schematic to display from thumbnails on the right and click for download.

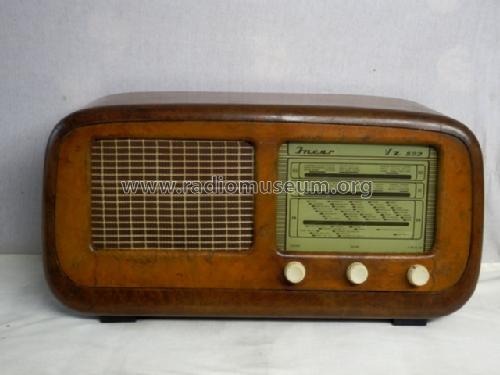

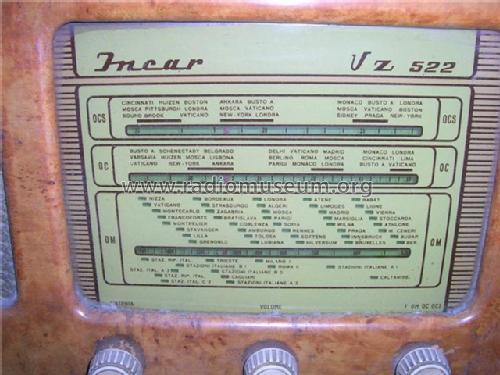

For model VZ522, Incar S.r.l.; Vercelli:
Foto per cortesia di Fabio

Country:  Italy
Manufacturer / Brand:  Incar S.r.l.; Vercelli
Year: 1952 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY42
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: VZ522 - Incar S.r.l.; Vercelli
Material Wooden case
Shape Tablemodel, low profile (big size).

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Incar S.r.l.; Vercelli
Here you find 86 models, 49 with images and 43 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
